Living Walls
Living Walls

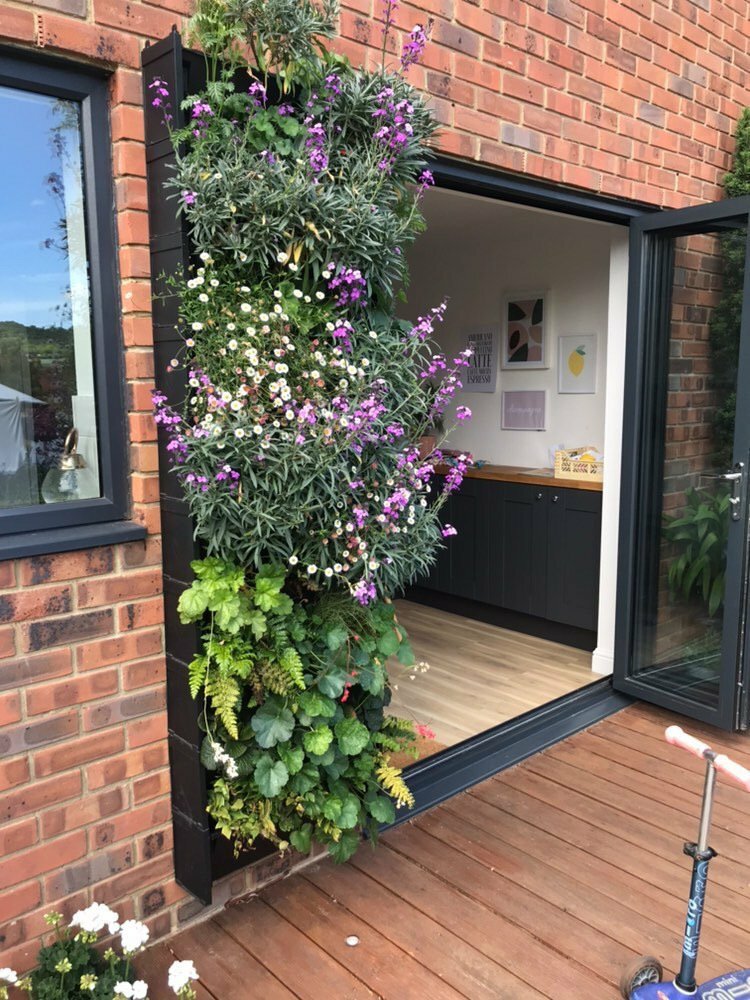

Growing Revolution -Plant Box, ideal for smaller installations
Plant Box is a cleverly simple living wall & vertical garden, with a unique watering system that makes looking after plants so easy! You can opt for the mini (3 troughs), a medium (5 troughs), or go large with 10 troughs to create a living wall 1.2 metres across. PlantBox will transform a plain, uninspiring wall into something to admire and you will be the envy of your guests.
The Plant Box is very easy to build, lightweight and sturdy. You create your living wall by stacking the units and, either stand on the ground, or cleverly with a drill and attach to a wall. The perfect solution for a residential project.
No daily watering with PlantBox!
Each planting trough has a 1.8 litre water reservoir. That’s enough for 1 or 2 weeks, depending on location, weather and how thirsty the plants are. The reservoir and wicking-felt means that plants take up water as they need it, so you don’t need to worry about over-watering either.
No more guesswork about when to water: a water level indicator on each trough of your PlantBox living wall means the plants will tell you when they’re thirsty.
You can get creative. The troughs have a good planting depth for a huge range of foliage plants, perennials, annual flowering plants, vegetables, herbs and salad crops.
Click here to download PlantBox brochure.
For a free quotation please click here
For smaller projects, click here to visit our online shop.
What are the benefits of Plant box Living Green Wall?
- Improves air quality through oxygen production and fine dust absorption
- Plants increases productivity and creativity
- Vertical greenery requires little space
- Improves the living, learning and working environment
- Promotes health, wellbeing and biodiversity
Features:
- Stackable, with strong clips to hold the troughs in place
- Water reservoir (holds 1.8 litres)
- Capillary wicking felt allows plant roots to draw up water as needed
- Water indicator tells you when to fill up
- Each planting trough is 12cm deep and holds 3-6 plants (depending on what you’re planting)
- Suitable for ordinary, multi-purpose compost
- Small footprint, so it’s ideal for balconies, roof gardens, patios or conservatories.
- Easily attached to boundary walls, fence posts, balcony railings or conservatory walls.
- Also suitable for indoor use (with an appropriate drip tray)
- Made from 100% recycled plastic, making the most of our household recycling
- Made in England
PlantBox was designed by plant lovers who want to share their passion for plants. Plus £1 from the sale of every PlantBox is donated to the PlantBox Trust. This charity gives to projects that provide green spaces, clean water, good nutrition and reduced air pollution. £1 from every PlantBox sold goes to community projects in the UK and overseas.
What are the specifications of Plantbox Living Wall?
Unit dimensions 600mm x 200mm x 150mm
Fully loaded weight 70kgs per m2Base material
100% recycled polypropylene
Trough depth 200mm
Reservoir capacity 1.8LPot size
Anything up to 1ltr pots
Design life +10 years
Substrate type Peat free multi-use compost
Fixings2 fixings per 600mm height
Nutrient feed Slow release pellet or liquid feed
What applications is it best for?
- High impact feature walls where installation and maintenance costs are less important than the overall impact.
- Urban growing of local produce for commercial and community growing initiatives.
- Cladding replacement, used as an alternative to traditional wall cladding.
Living Walls
Mobilane MobiPanel, ideal for larger scale and Commercial projects
The MobiPanel living wall system is the latest generation in vertical green from Mobilane. It is specially developed to make future-proof and sustainable construction even more accessible. This unique modular living wall system, with its interchangeable plant cassettes in two sizes, makes it possible to give a sustainable and vibrant appearance to both flat and curved walls.
Climate-proof construction with MobiPanel
Both existing and new outer walls with various surfaces can easily be greened using MobiPanel living wall. This not only looks wonderful but also contributes to greater biodiversity, while purifying the air and controlling heat. An outstanding system for sustainable building, climate-proof construction and creating a healthy and attractive living environment with living walls.
Unlimited areas of application
The modular system offers infinite options for use. The corrosion-resistant profiles can be installed both horizontally and vertically, depending on the format and layout of the backing wall. The profiles provide the bearing structure for the plant cassettes measuring 40 x 40 cm and the quarter cassettes (pixels) of 20 x 20 cm.
Space for plants in the living wall system
The plant cassettes are fitted with two spacious slots for plants of varying size. The MobiPanel living wall as a result lends itself to a broad range of plants, whether pre-grown or planted on site. The plants take up water from the internal water buffer via capillary microfibre textile. An automated irrigation and drainage system ensures an even supply of water and efficient water consumption.
Benefits of MobiPanel living walls
- Contributes to greening the living environment
- Boosts air quality by absorbing fine dust particles and generating oxygen
- Promotes biodiversity
- Raises property values
- Dampens noise and insulates
- Captures rainwater
- Provides an immediate green effect
Unique features of MobiPanel living walls
- Suitable for flat, curved walls and various wall types
- Interchangeable plant cassettes in two sizes (40 x 40 cm and 20 x 20 cm)
- Economical water consumption
- Reusable and fully recycable
- Automated irrigation and drainage system
- Modular system
- Easy to install on new and existing outer and inner walls
Living Walls

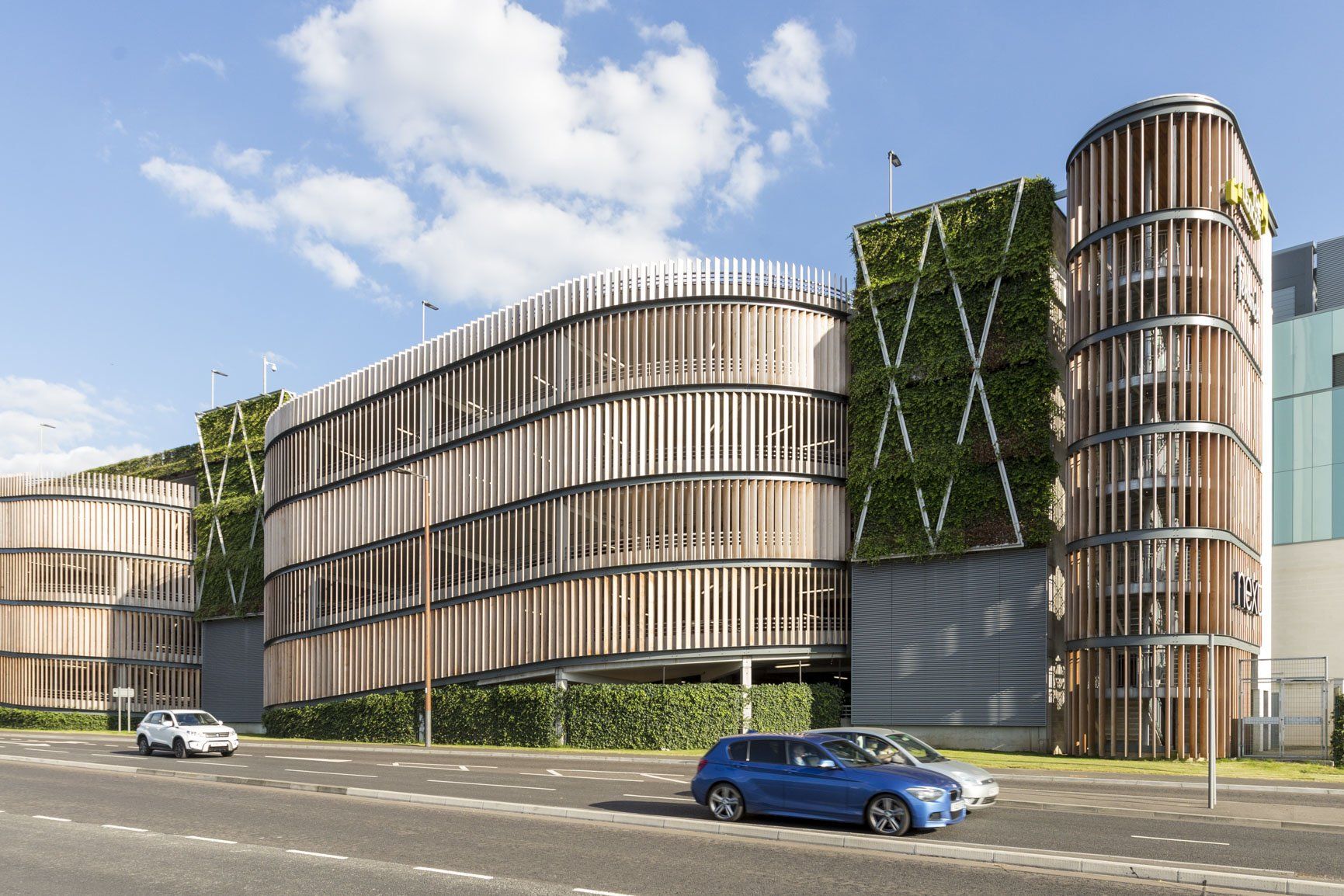

Mobilane WallPlanter
The Mobilane Living Green Wall WallPlanter system uses the same screen meshing as the green screens. It is very strong, 5mm high carbon, hot dipped galvanized steel. Each planter box, weighing around 1,450kg saturated, contains 65 shoots of Ivy typically Hedera helix “Woerner” per screen.
Each screen is rooted in and grown to the full height required before installation into planter boxes, made from 3mm ship grade aluminum measuring 500mm deep and 500mm wide by length options of 3900, 2600 or 1300. They incorporate a 10mm drainage matting at the base of the planter, which ensures no blocking of the drainage system by the plant roots. They are insulated for both heat and cold and have the capability to protect the roots from either eventuality.
The specialized planting media ensures lifetime stability of the root zone area with minimal loss of volume. It’s stabilized porous structure ensures all water and feed is delivered directly to the plant root system and is easily accessed by the plants, ensuring minimal wastage of water and feed. This structure ensures a high level of oxygen in the planting media.
Due to the weight of the WallPlanter system, a robust support structure is required. This support system can be installed from ground level or be attached directly to the building depending on the strength of the structure. The planters are located on to the structure using a crane. For the supply of water and nutrients, a plant room/area of at least 2m2 is required situated as close to the living wall as possible.
What are the benefits of Mobilane's WallPlanter Living Walls?
- Efficient use of vertical surfaces in inner city spaces
- Encourages biodiversity
- Significant reduction of sub-micron particle pollution, improving air quality
- Aesthetically pleasing alternative to enhance an old existing building or newbuild
- Specification
What are the specifications of Mobilane's WallPlanter Living Walls?
- Planter box weight load with screens (3900mm) not exceeding 1450kg saturated
- Dimensions 500mm x 500mm x 3900mm
- Optional lengths (2600mm and 1300mm size specific dimensions) are possible
- Screens in planters can be grown to a maximum height of 2200mm, total height with screen in planter box is 2850mm
- A robust support structure will be required to support the planter boxes due to the weight. This can be installed from ground level or be attached directly to a building (dependent on wall structure)
- The planters are located onto the supported steel work
using a crane
A smaller alternative to the Living Wall
You may wish to consider another option, our LivePicture GO and LivePicture. Both products can be used internally or externally, bought trade or through our online shop.
View LivePicture Go and LivePicture ranges in our online shop, click here or select from below:
These are just a sample of the products and methods used to create living green walls.
Innovative methods, styles and products are constantly evolving, therefore we may suggest a product from our portfolio that is better suited to your project. Always working with your vision in mind.
The result is a beautiful living green wall that reduces air pollution and promotes biodiversity .
If you would like to learn more about living green walls, please take a moment to watch our Photo Book video of the variety of uses.
Please call or email for more information or for a quotation.
